HX-5

UltraHigh Speed Camera

NAC Image Technology

  • CMOS Sensor: 2560 X 1920 Active Pixels
  • Bit Depth: Customer Selectable - 12/10/8 Bit
  • Electronic shutter open to 200 ns
  • Dynamic range expansion shutter
  • Versatile recording
  • High resolution time and sync system to < 73 nanoseconds
  • Dual segment recording

Details

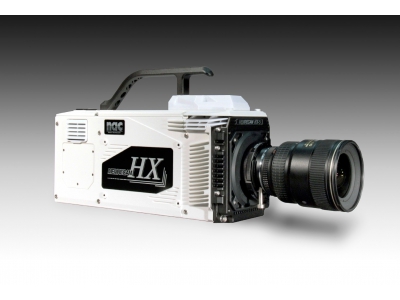

The Memrecam HX-5 is like having two (2) cameras in one; Providing the user with the best possible solutions: the highest resolutions available, the highest light sensitivity available AND ultra fast imaging!

The HX-5 offers an astounding 5 Mega Pixel resolution at up to 1,370 fps, full HD resolution at up to 3,210 fps, 1 Mega Pixel resolution at up to 6,340 fps, and so much more!

Specifications

Max Resolution
2560 X 1920
FPS (@ Max Res)
1,370
Memory Options
16 Gb
32 Gb
64 Gb
Output
Ethernet

Models

HX-5

Downloads

HX-5 Ultra High Speed Camera
