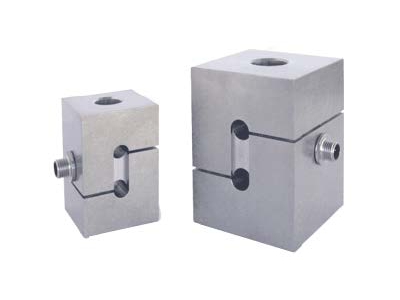

The HSW Series Load Cell is hermetically sealed for use in harsh industrial environments. All ranges are made from 17-4ph heat treated stainless steel and incorporate a stainless steel molded connector system designed to resist wash down and most chemicals. The mating connector, sold separately, is available in three different cable lengths. As with our SW 0 Series, the HSW Series offers high accuracy, low deflection, fast frequency response, and a good output (millivolt) compliance between tension and compression.
HSW
Hermetically Sealed
Transducer Techniques
- Hermetically Sealed
- Tension & Compression
- Accuracy: ±0.25% R.O.
- Length: 36.2mm - 73.7mm
- Weight: 36.2mm - 73.7mm
- Height: 63.5mm - 158.7mm
- Connection: Brad Harrison Connector
Details
Specifications
Type
S-Type
Application
Tension & Compression
Full Scale
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
20000 lbs
30000 lbs
50000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
20000 lbs
30000 lbs
50000 lbs
Output
2 mV/V
Precision
±0.25 % FS
Excitation
10 V DC
Min Temperature
-54 °C
Max Temperature
93 °C
Models
HSW-20K
HSW-30K
HSW-50K
HSW-5K
HSW-10K
HSW-1K
HSW-2K
HSW-3K
Downloads
HSW In-Line Hermetic
