AMTI's HE6X6 System is a compact solution for quantifying very low loads. The HE6X6 is accurate, economical, and easy to use with AMTI's powerful NetForce data acquisition software package. The HE6X6 featres a 6" x 6" working surface and specific uses include human proprioception testing and small animal applications.

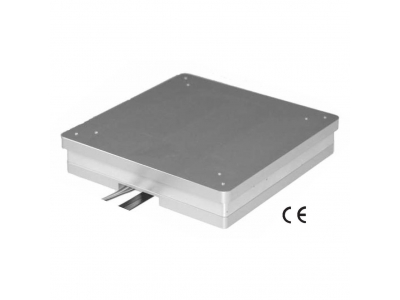

HE6X6
Low Load Miniature Force Platform
Advanced Mechanical Technology Inc. (AMTI)
- Compact solution for quantifying low loads
- Economical and accurate solution
- 6" x 6" working surface, specifically for human proprioception testing and small animal applications
- No mounting required
Details
Specifications
Full Scale (Fz)
1 lbs
5 lbs
16 lbs
20 lbs
5 lbs
16 lbs
20 lbs
Fz Natural Frequency
42 Hz
95 Hz
135 Hz
170 Hz
195 Hz
95 Hz
135 Hz
170 Hz
195 Hz
Resolution
12-bit
Output
± 10 V DC
Dimensions
152 x 152 x 29 mm
Weight
1.6 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
7.5 V DC
110 - 240 V AC
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
HE6X6-1
Fz Range: 1 lbs, Fz Freq.: 42 Hz
HE6X6-10
Fz Range: 10 lbs, Fz Freq.: 135 Hz
HE6X6-16
Fz Range: 16 lbs, Fz Freq.: 170 Hz
HE6X6-20
Fz Range: 20 lbs, Fz Freq.: 195 Hz
HE6X6-5
Fz Range: 5 lbs, Fz Freq.: 95 Hz
