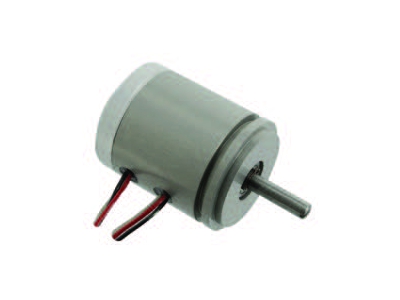

The H009 and 1200 dual-output rotary position sensors represent a leap in precision measurement technology. With a housing diameter of 22.23 mm and a compact length of 26.1 mm, these sensors are designed to provide accurate positioning data up to 359°. They feature versatile output capabilities, including 12-bit analog/PWM and 14-bit serial (SPI), ensuring compatibility with a wide range of control systems. The dual-output functionality offers ±0.2% linearity accuracy, powered by a 5-volt supply for efficient operation across a broad temperature spectrum from -40°C to 150°C.
Built to last beyond 100 million cycles, these sensors are ideally suited for critical position feedback in a variety of sectors, including commercial, industrial, medical, aircraft, and military markets. Their robust design, combined with high precision and dual-output versatility, makes them an optimal choice for applications requiring reliable, long-term performance in harsh conditions.
