GS50

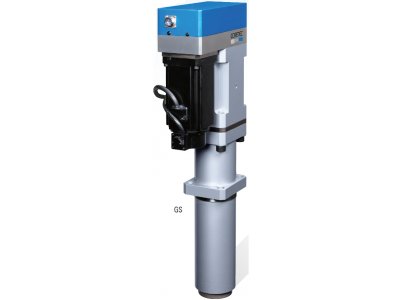

50 kN (5 Ton) Assembly Servo Press

Coretec

  • Maximum Force Range, 50 kN (5 Ton)
  • Stroke ranges available – 200mm and 400mm
  • Maximum actuator speed of 215 mm/sec.
  • Cyclic loading up to 40kN without damage

Specifications

Max Force
50 kN
Max Speed
215 mm/s
Stroke
200 mm
400 mm
Interface
Digital I/O
ProfiNet
DeviceNet
EthernetIP
CC-Link

Models

GS50-200BK
50kN Force Capacity and 200 mm stroke, with Brake
GS50-400BK
50kN Force Capacity and 400 mm stroke, with Brake
