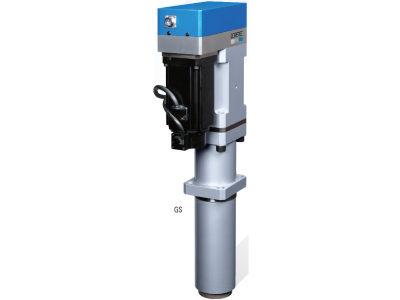

GS30

30 kN (3 Ton) Assembly Servo Press

Coretec

  • Maximum Force Range: 30 kN (3 Ton)
  • Stroke ranges available: 100 mm, 200 mm, and 350 mm
  • Maximum actuator speed: 320 mm/sec
  • Load cell accuracy: ±1.5% FS (Repeatability ±0.5% FS)
  • Positional repeatability: ±0.01 mm
  • Brake holding load of 3.2 kN
  • Optimized for precise, repeatable press operations

Specifications

Max Force
30 kN
Max Speed
320 mm/s
Stroke
100 mm
200 mm
350 mm
Interface
Digital I/O
ProfiNet
DeviceNet
EthernetIP

Models

GS30-100BK
30kN Force Capacity and 100 mm stroke, with Brake
GS30-200BK
30kN Force Capacity and 200 mm stroke, with Brake
GS30-350BK
30kN Force Capacity and 350 mm stroke, with Brake
