GL

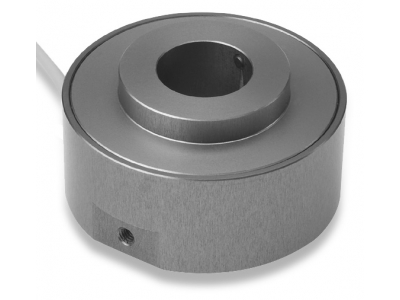

Hollow-Shaft Rotary Displacement Potentiometer

Novotechnik

  • Conductive Plastic Potentiometer
  • Anodized Aluminum Housing
  • 6mm - 30mm Hollow Shaft
  • Connection: 1m Integral Cable
  • Long Lifetime
  • High Resolution
  • Simple Installation

Specifications

Type
Potentiometer
Full Scale
140°
150°
340°
354°
Max Speed
130 RPM
165 RPM
200 RPM
230 RPM
Output
Potentiometric
Non-Linearity
±0.25 % FS
Resolution
0.1°
Excitation
0 - 42 V DC
IP Rating
IP63
Min Temperature
-25 °C
Max Temperature
75 °C

Models

GL100
140°/340° Range, 200 RPM
GL200
150°/340° Range, 165 RPM
GL300
340° Range, 130 RPM
GL60
150°/354° Range, 230 RPM

Downloads

GL Hollow-Shaft Rotary Displacement Potentiometer
Datasheet
