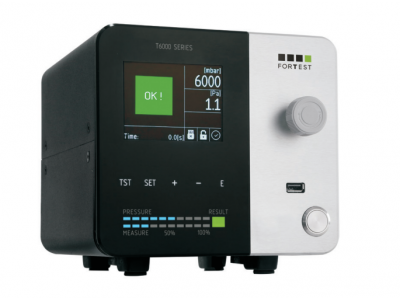

ForTest - T6060

Differential entry level leak tester

ForTest

  • Manual Pressure Regulation
  • Multiple Programs for different parts
  • Multiple Languages, English, French, Spanish, Italian, …
  • Sequence – Fill to Test Pressure, Stabilize, Measure Absolute Pressure Decay, calibrated leak rate
  • Data Collection by Serial Number, using a PC or PLC ( optional Field buses, Ethernet IP, Modbus)

Details

The ForTest T6060, is designed as an entry-level equipment, the measurement performance is absolutely comparable to those of the rest of the ForTest range. With standard flow valves, it's ideal for testing volumes up to 5 liters. it's low maintenance, stable and noise free.

All the connections you need.

The T6060 has more of a limited port supply than the high-level range, but is equally complete: a USB slave port, RS232, RS485.
The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade firmware.

The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu.

Everything is where it should be.

Despite the compact dimensions which made use of more simplified menus necessary, the T6060 user interface was however designed to facilitate programming of the test parameters.

The front panel is made of a single sheet of tempered glass and aluminium, which makes it extremely easy to clean, making the T6060 suitable for use in the laboratory and on the production line.

The extensive internal menus are easy to understand and the graphic interface was designed to only display important information.
Everything is exactly where it should be.

Specifications

Type
Pressure Decay
# of Channels
1
Resolution
0.1 Pa (0.000015 psi)
Display
Numeric
Data Storage
USB

Models

T6060
Differential entry-level leak tester

Accessories

Adapter cable AUX M Series - ET Series
Adhesive label for printer 4500pcs
Air filter
Air filter 5 micron
Aux signals extension cable
Barcode reader
Bi-manual logic Start Input
External 24 VDC power supply
External exhaust solenoid with protection filter
External pushbutton 4 programs selection
External start button
External start/abort pushbutton
Frontal precision pressure regulator - (STANDARD)
High resolution measure - (STANDARD)
M series manager software
MIXER-07
PC serial cable owner - M Series
Pneumatic module of remote measurements - (STANDARD)
Pneumatics with micro electro valves - (STANDARD)
Remote Start / Abort / Good / Reject
Serial protocol
Software "Data Manager"
Software Data Manager
Start pedal
Thermal printer with peel-off
Thermal printer without peel
TTY
Venturi Vacuum generator
