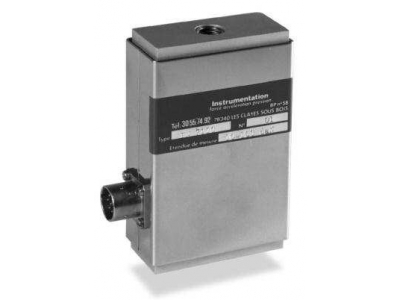

The FN7110 Double S-Beam Load Cell stands out for its dual-range capability, offering high accuracy measurement channels that cater to a broad spectrum of force measurement needs. Engineered with a standard ratio of 1 to 10 between its ranges, this load cell accommodates standard load range combinations from 0-10 N up to 0-10,000 N, ensuring versatility across a wide array of applications.
A distinguishing feature of the FN7110 is its consistent percentage accuracy across both ranges, maintaining a remarkable 0.1% accuracy even within the initial 10% of the high force range. This precision is pivotal for applications requiring exact force measurements across varying magnitudes.
To safeguard the load cell during operation, the FN7110 is equipped with mechanical stops designed to protect the lower range sensing element from overloads. These stops are effective in both tension and compression scenarios, providing protection up to 12 times the full scale limit of the higher range. This feature ensures the longevity and reliability of the load cell under strenuous conditions.
For applications necessitating high-level output, an alternative model of the FN7110 with an integrated amplifier is available, enhancing the versatility and application scope of this load cell.
The FN7110 is ideally suited for both compression and traction applications, offering high resolution and reliable performance across its dual ranges, from 10/100 N to 1k/10k N (2/20 lbf to 200/2k lbf). This makes it an indispensable tool for precision force measurement in a variety of testing and monitoring scenarios.

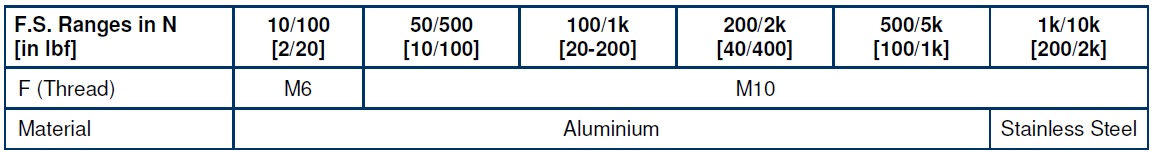

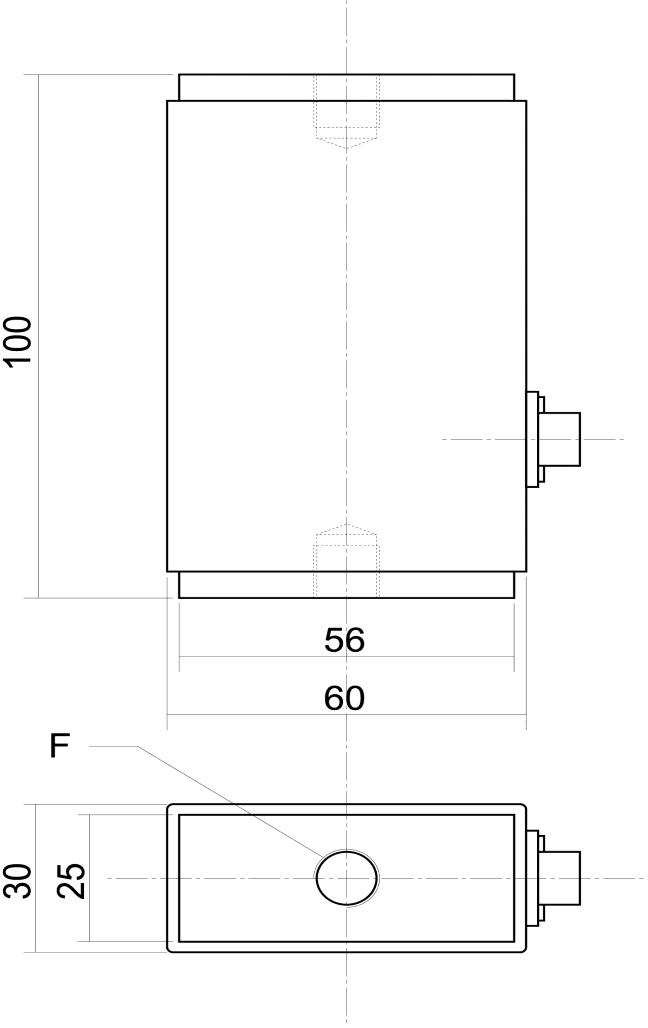

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
