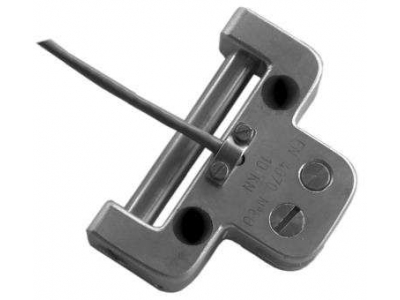

Designed specifically for crash-testing scenarios, the FN4070 load cell accurately measures the forces exerted on seat belt anchor points during impact tests. This precision instrument is compatible with a wide range of seat belt systems, ensuring versatility across different vehicle models. With operating ranges extending from 0-1kN to 0-40kN, the FN4070 provides comprehensive coverage for various testing requirements.
A key feature of the FN4070 is its detachable tongue design, allowing for quick and easy replacement to facilitate multiple test setups without the need for purchasing new load cells. Additionally, the load cell is equipped with a cable output that crash test technicians can renew themselves, enabling efficient, in-house maintenance and significantly reducing operational costs.
For testing scenarios requiring lower operating ranges, the FN4080 model offers ranges of 250N, 500N, and 2500N, catering to a broader spectrum of crash test applications. The FN4070 load cell is an essential tool for automotive safety testing, combining durability, flexibility, and cost-efficiency in a single device.

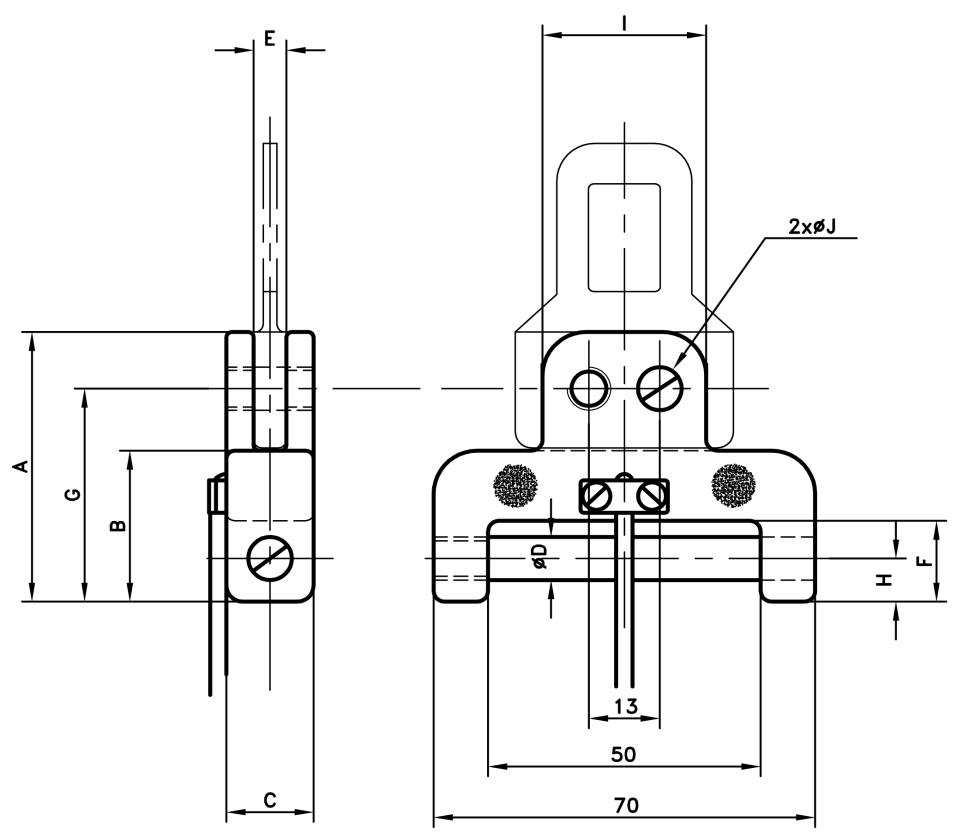

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)
Wiring Schematic

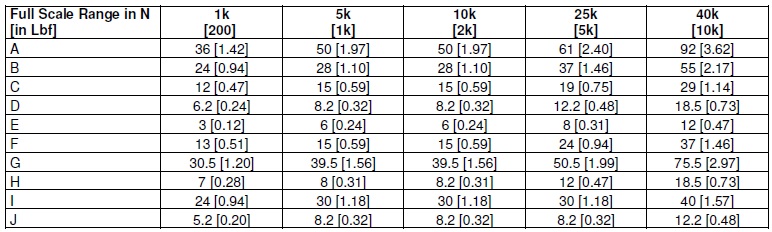

Dimensions in mm [inch]
