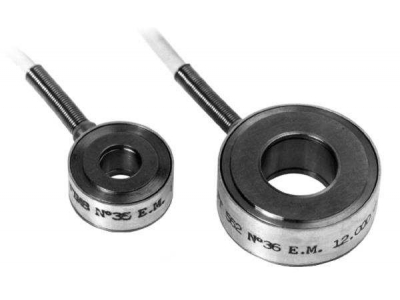

The FMT washer load cell embodies advanced engineering for accurately measuring clamping and screwing forces in a variety of applications. Its innovative design effectively minimizes the common challenges of hysteresis and sensitivity variations that typically arise from the torque generated during the tightening process. This ensures more reliable and consistent force measurement outcomes, critical in applications where precision is paramount.
With its high stiffness, the FMT load cell is adept at performing in both static and dynamic environments, making it a versatile choice for diverse operational demands. The load cell's force measurement capabilities span from 20 kN to 320 kN [4.5 klbf to 71.9 klbf], providing a wide operational range to accommodate different screw dimensions and application requirements.
Designed to withstand the rigors of various industrial applications, the FMT washer load cell also offers customization options for high-temperature environments upon request. This adaptability, combined with its robust construction, ensures that the FMT load cell delivers reliable performance under challenging conditions, making it an essential tool for precision force measurement in engineering and manufacturing processes.

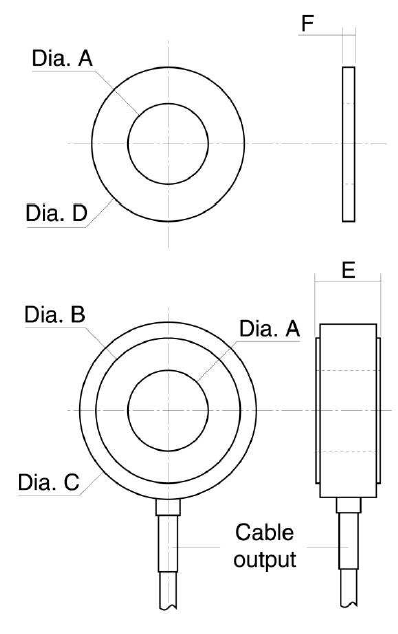

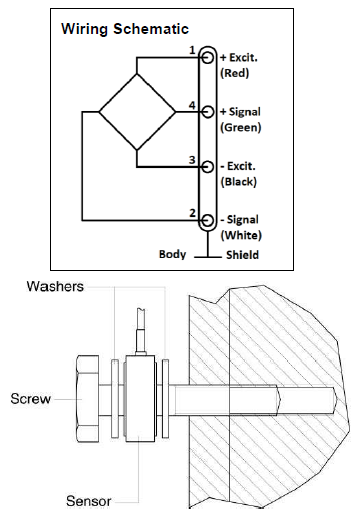

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)

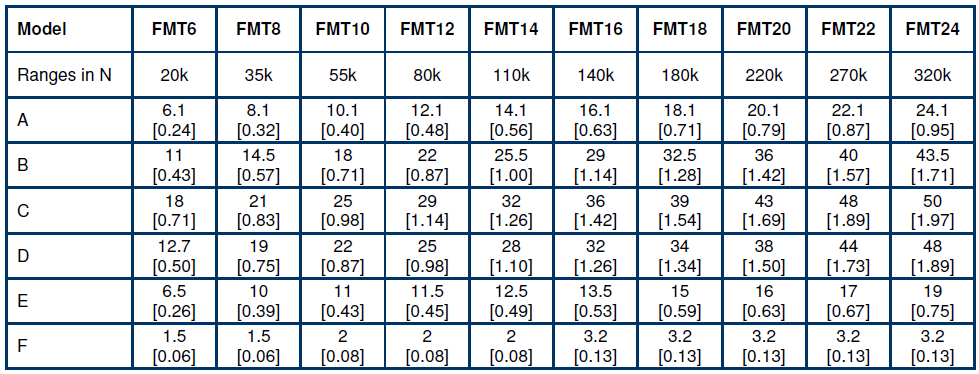

Dimensions in mm [inch]
