F58

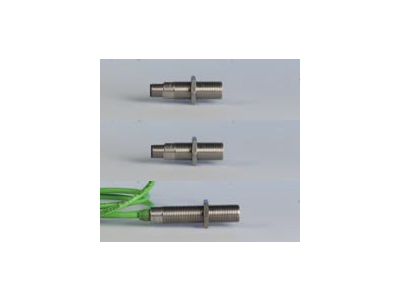

Zero Speed Hall-Effect Speed Sensor

Jaquet North America Inc.

  • Zero Speed Hall-Effect Sensor
  • Stainless Steel Housing
  • Protection Class: IP67
  • Mounting Thread: 5/8-18 UNF-2A
  • Connection: 4-pin M12 x 1 Connector (Model F58A)
  • Connection: 2-pin MS3102A Connector (Model F58AM)
  • Connection: 22 AWG Silicone-Insulated Leads (Model F58S)

Specifications

Type
Hall Effect
Max Frequency
15 kHz
Mounting
M12x1
Connection
22 AWG Silicone-Insulated Leads
MS3102A
Min Temperature
-40 °C
Max Temperature
125 °C

Models

F58A
5/8-18 UNF-2A Thread, 40mm Thread Length, 4-pin M12x1 Connector
F58A25
5/8-18 UNF-2A Thread, 64mm Thread Length, 4-pin M12x1 Connector
F58A40
5/8-18 UNF-2A Thread, 102mm Thread Length, 4-pin M12x1 Connector
F58AM
5/8-18 UNF-2A Thread, 33mm Thread Length, 2-pin MS3102A Connector
F58AM25
5/8-18 UNF-2A Thread, 64mm Thread Length, 2-pin MS3102A Connector
F58AM40
5/8-18 UNF-2A Thread, 102mm Thread Length, 2-pin MS3102A Connector
F58S
5/8-18 UNF-2A Thread, 50mm Thread Length, 22 AWG Silicone-Insulated Leads
F58S25
5/8-18 UNF-2A Thread, 60mm Thread Length, 22 AWG Silicone-Insulated Leads
F58S40
5/8-18 UNF-2A Thread, 102mm Thread Length, 22 AWG Silicone-Insulated Leads
