F5-1600

Forklift Mobile Robot

HIKROBOT

High load capacity, lifting, carrying, and lowering goods up to 1600 kg using standard pallets.
SLAM navigation enables precise positioning and smooth motion in networked environments.
Fork dimensions and gantry structure can be customized to meet specific operational requirements.
Supports maximum running speed of 1.5 m/s with positioning accuracy within ±10 mm and angular accuracy within ±1°.
Automatic charging and self-return functionality enhance operational efficiency.
Advanced safety systems include laser and infrared obstacle avoidance, load detection, emergency stop buttons, and audible alarms.
LCD screens and status indicators provide clear device monitoring and control.

Details

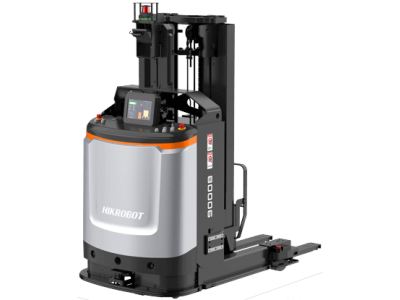

The MR-F5-1600-HI(CE) forklift mobile robot combines cutting-edge technology with robust engineering to deliver exceptional automation in material handling. It supports a variety of applications, ranging from e-commerce and electronics manufacturing to automotive and pharmaceutical industries. This intelligent mobile robot features SLAM-based navigation for precise positioning, customizable fork dimensions, and advanced safety protocols, ensuring smooth operations even in dynamic environments. Its efficient power management enables automatic charging, making it an eco-friendly and cost-effective solution for modern logistics and warehousing needs.

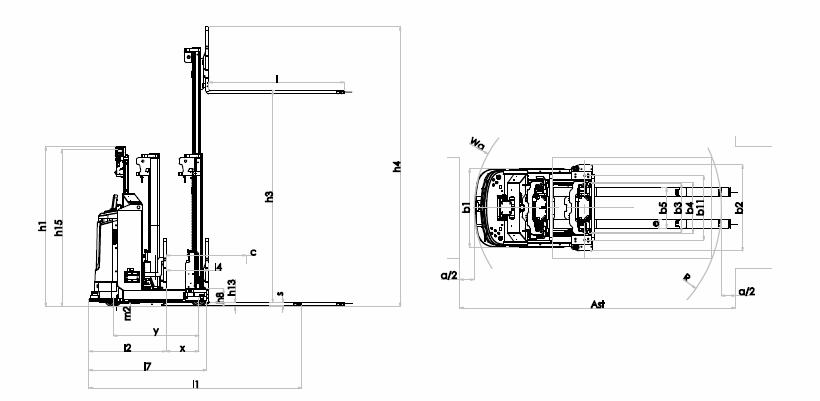

Dimension

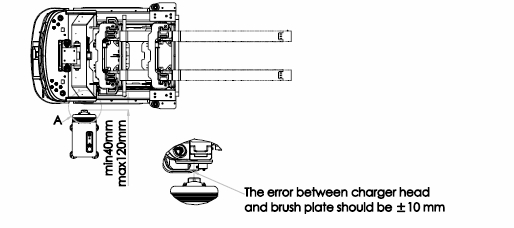

Charging Station Deployment Presented

Specifications

Type

Forklift Mobile Robot [FMR]

Lifting Height

3000 mm

Rated Load

1600 kg

Navigation Mode

Laser SLAM

Driving Mode

Movement Mode

Charging Time (h)

2 h

Run time (h)

6~8

Min. Aisle Width (m)

2.7 m

Models

MR-F5-1600-HI(CE)

Downloads

MR-F5-1600-HI(CE)_datasheet-

Datasheet
