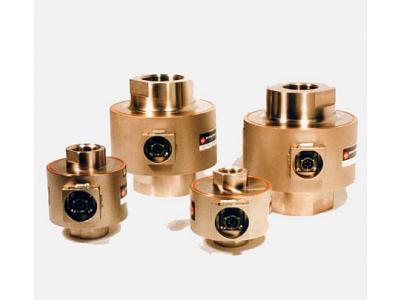

The F300, F301, and F302 feature fatigue rating, high stiffness, small diameter, and resistance to the negative effects of extraneous forces. Integral receptacle protection enhances its rugged construction by preventing accidental damage during setup or dismantling. The F300, F301, and F302 can be used with AC carrier and DC strain gauge signal conditioning electronics. Interconnecting cable assemblies are available as an option.
F300
Rod End Mount
Sensor Data Technologies Inc.
- Fatigue Rated
- Tension & Compression
- Accuracy: ±0.35% R.O.
- Outer Diameter: 88.9mm - 139.7mm
- Height: 82.5mm - 152.4mm
- Connection: PT02E-10-6S Connector
- Alloy Steel with Satin Nickel Finish
Details
Specifications
Type
Rod Type
Fatigue Rated
Fatigue Rated
Application
Tension & Compression
Full Scale
5000 lbs
10000 lbs
20000 lbs
25000 lbs
50000 lbs
75000 lbs
100000 lbs
10000 lbs
20000 lbs
25000 lbs
50000 lbs
75000 lbs
100000 lbs
Output
2 mV/V
Precision
±0.35 % FS
Excitation
10 V DC
10 V AC
10 V AC
Min Temperature
-54 °C
Max Temperature
93 °C
Models
F300-110-20K
F300-110-20K-DB
F300-110-25K
F300-110-25K-DB
F300-STD-10K
F300-STD-10K-DB
F300-STD-20K
F300-STD-20K-DB
F300-STD-5K
F300-STD-5K-DB
F301-STD-50K
F301-STD-50K-DB
F301-STD-75K
F301-STD-75K-DB
F302-STD-100K
F302-STD-100K-DB
Downloads
F300 to 302
