These low profile “pancake” load cells are for universal or tension applications and are usually bolted to a plate or surface that is flat and parallel.
For compression only applications, a load button with a spherical loading surface can be used.

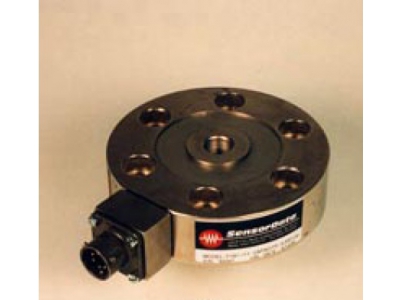

F140
Universal Fatigue Rated Load Cell
Sensor Data Technologies Inc.
- Fatigue Rated to 10<sup>8</sup> cycles
- Tension & Compression
- Accuracy: ±0.23% R.O
- Outer Diameter: 76.2mm , 3 inch
- Height: 25.4mm, 1 inch
- Connection: PT02E-10-6P Connector
- Alloy Steel with Satin Nickel Finish
Details
Specifications
Type
Pancake
Fatigue Rated
Fatigue Rated
Application
Tension & Compression
Full Scale
250 lbs
500 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
20000 lbs
500 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
20000 lbs
Output
2 mV/V
Precision
±0.23 % FS
Excitation
10 V DC
10 V AC
10 V AC
Min Temperature
-65 °C
Max Temperature
200 °C
Models
F140-1K
1K lbs. F.S. Range
F140-250
250 lbs. F.S. Range
F140-500
500 lbs. F.S. Range
Accessories
AG003-ZA
Cable Assembly, Connector PT06F-10-6S (A+exc,B+sen,C-sen,D-exc,E-sig,F+sig) to open leads, in lengths from 1ft to 100ft, (custom termination connections available)
AG176-ZA
Cable Assembly, Connector PT06F-10-6S (A+exc+sen, B-sig, C+sig+cal, D -exc - sen); to open leads, in lengths from 1ft to 100ft, (custom termination connections available)
Downloads
F140 to F142
