EP 1200-60

Manual Toggle Press

Mäder Pressen

  • Manual toggle press
  • Capacity: 12.0 kN
  • Working stroke: 60 mm
  • Throat: 80 mm
  • Daylight: 62 - 240 mm
  • Table size: 157 x 115 mm
  • Ram bore Ø x Depth: 10H7 X 30 mm

Details

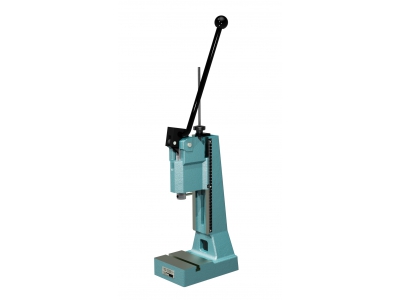

Manual Toggle press with round ram EP range

EP type toggle presses with 12.0 kN are designed for serial or individual manufacture in manual workstations.

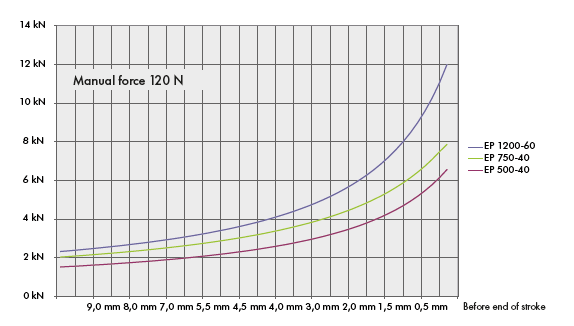

As the nominal end force is produced at the end of the stroke, a large force can be exerted at the exact point it is required. The manual force of 120 N to be applied is user-friendly. As many applications require less force, fatigue free working is possible even with serial production.

ERGOPRESS® hand lever

- Ergonomic user comfort.

- 360º stepless adjustment

- Lever angled to the side: free view of work area and ergonomically comfortable position.

- Simple and easy conversion for left-hander (except HS and Z option) without losing the tool setting. Ideal for job sharing on one press.

EP- type presses are modern production tools with high precision. The user- friendly design increases productivity and prevents forced and abnormal postures of the operator due to the workplace.

Specifications

Type of Press
Toggle Press
Capacity
12.0 kN
Working Stroke
40 mm
Daylight Start
51 mm
Daylight End
168 mm
Table Size
157 x 115 mm
Ram Dimensions
10H7 x 30 mm
Ram Size
30 mm

Models

EP 1200-60
EP 1200-60 DP
EP 1200-60 with Precision ram adjustment
EP 1200-60 DP HS
EP 1200-60 with Precision ram adjustment and Return travel lock
EP 1200-60 DP HS Z
EP 1200-60 with Precision ram adjustment, Return travel lock and Counter
EP 1200-60 DP Z
EP 1200-60 with Precision ram adjustment and Counter
EP 1200-60 HS
EP 1200-60 with Return travel lock
EP 1200-60 HS Z
EP 1200-60 with Return travel lock and Counter
EP 1200-60 TB
EP 1200-60 with Table bore 12H7
EP 1200-60 TB DP
EP 1200-60 with Table bore 12H7 and Precision ram adjustment
EP 1200-60 TB DP HS
EP 1200-60 with Table bore 12H7, Precision ram adjustment and Return travel lock
EP 1200-60 TB DP HS Z
EP 1200-60 with Table bore 12H7, Precision ram adjustment, Return travel lock and Counter
EP 1200-60 TB DP Z
EP 1200-60 with Table bore 12H7, Precision ram adjustment and Counter
EP 1200-60 TB HS
EP 1200-60 with Table bore 12H7 and Return travel lock
EP 1200-60 TB HS Z
EP 1200-60 with Table bore 12H7, Return travel lock and Counter
EP 1200-60 TB Z
EP 1200-60 with Table bore 12H7 and Counter
EP 1200-60 Z
EP 1200-60 with Counter
