The series EC-FS Weigh Cells cover the weighing range up to 15 kg. They have been specifically designed as compact sensor components, meaning they are especially suited for installation into checkweighers, price labelling and Lift-up systems, filling and packaging machines, parcel and letter sorting systems. The large additive dead load range favours the mounting of conveyor belts or weighing platforms without limiting the weighing range.

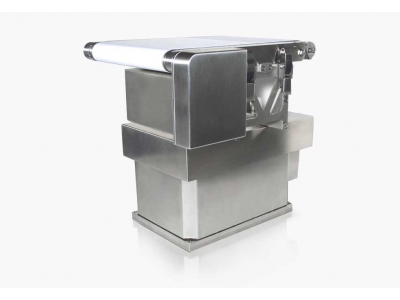

EC-FS + VA30 Conveyor (IP 65)
Weigh Kit
Wipotec Gmbh
- Weighing range up to 15 kg, 5 Models
- Additive dead load range up to 15 kg
- Stainless Steel Housing
- Protection class up to IP 65
- Binary I/O channels with customer-specific functions
- Interface 1: CAN or RS 422
- Interface 2: RS 232 for service and configuration
Details
Specifications
Type
Weigh Kit
Full Scale
750 g
1500 g
3750 g
7500 g
15000 g
1500 g
3750 g
7500 g
15000 g
Dead Load
4000 g
8500 g
15000 g
8500 g
15000 g
Interface
RS232
RS422
CANbus
Binary I/O
Bus Operation
RS422
CANbus
Binary I/O
Bus Operation
Linearity
0.02 g
0.04 g
0.1 g
0.2 g
0.4 g
0.04 g
0.1 g
0.2 g
0.4 g
Resolution
0.01 g
0.02 g
0.05 g
0.1 g
0.2 g
0.5 g
1 g
0.02 g
0.05 g
0.1 g
0.2 g
0.5 g
1 g
Conveyor Length
250 mm
300 mm
400 mm
500 mm
300 mm
400 mm
500 mm
Conveyor Width
120 mm
150 mm
200 mm
300 mm
150 mm
200 mm
300 mm
IP Rating
IP44
IP65
IP65
Models
EC-2000-2-FS
Weigh Range 750 g, Dead Load 4000 g
EC-3000-3-FS
Weigh Range 1500 g, Dead Load 8500 g
EC-4000-1-FS
Weigh Range 15000 g, Dead Load 15000 g
EC-4000-2-FS
Weigh Range 7500 g, Dead Load 15000 g
EC-4000-3-FS
Weigh Range 3750 g, Dead Load 15000 g
VA30
IP 65 Conveyor
