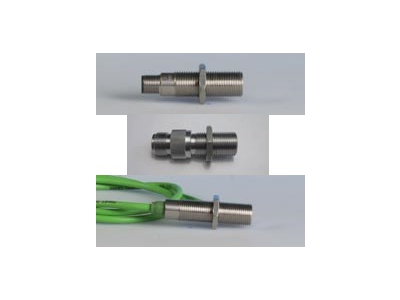

E16

Electromagnetic VRS Sensor

Jaquet North America Inc.

  • VRS Sensor
  • Stainless Steel Housing
  • Protection Class: IP67
  • Mounting Thread: M16 x 1.5
  • Connection: 4-pin M12 x 1 Connector (Model E16A)
  • Connection: 22 AWG Silicone-Insulated Leads (Model E16S)
  • Connection: 2-pin MS3102A Connector (Model E16AM)

Specifications

Type
Magnetic Pickup
Max Frequency
20 kHz
Mounting
M16x1.5
Connection
22 AWG Silicone-Insulated Leads
M12x1
MS3102A
Min Temperature
-40 °C

Models

E16A
M16.x1.5 Thread, 40mm Thread Length, 4-pin M12x1 Connector
E16A25
M16.x1.5 Thread, 64mm Thread Length, 4-pin M12x1 Connector
E16A40
M16.x1.5 Thread, 102mm Thread Length, 4-pin M12x1 Connector
E16AM
M16.x1.5 Thread, 33mm Thread Length, 2-pin MS3102A Connector
E16AM25
M16.x1.5 Thread, 64mm Thread Length, 2-pin MS3102A Connector
E16AM40
M16.x1.5 Thread, 102mm Thread Length, 2-pin MS3102A Connector
E16S
M16.x1.5 Thread, 50mm Thread Length, AWG 22 Silicone-Insulated Leads
E16S25
M16.x1.5 Thread, 64mm Thread Length, AWG 22 Silicone-Insulated Leads
E16S40
M16.x1.5 Thread, 102mm Thread Length, AWG 22 Silicone-Insulated Leads
