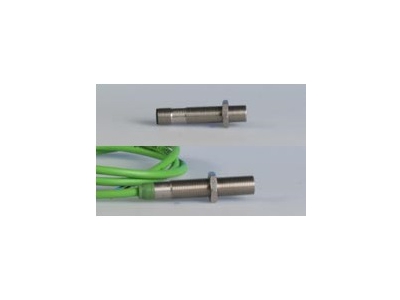

E12

Electromagnetic VRS Sensor

Jaquet North America Inc.

  • VRS Sensor
  • Stainless Steel Housing
  • Protection Class: IP67
  • Mounting Thread: M12 x 1
  • Connection: 4-pin M12 x 1 Connector (Model E12A)
  • Connection: 22 AWG Silicone-Insulated Leads (Model E12S)
  • Simple Installation

Specifications

Type
Magnetic Pickup
Max Frequency
20 kHz
Mounting
M12x1
Connection
22 AWG Silicone-Insulated Leads
M12x1
Min Temperature
-40 °C

Models

E12A
M12x1 Thread, 40mm Thread Length, 4-pin M12x1 Connector
E12S
M12x1 Thread, 50mm Thread Length, 22 AWG Silicone-Insulated Leads
