The series DVS-C digital load cell covers weighing range of 15Kg to 75Kg. They are aseptic designed for food handling and are hermetically sealed stainless-steel housing with IP68 ratings.
DVS-C
Digital Single Point Load Cell
Scaime
- Hermetically sealed with IP68, IP69K for washdown
- Easy to clean, aseptic design for food handling
- Integrated without additional protection to meet the most stringent Food
- & Beverage hygiene requirements
- Controller programmed suited for Check-Weigher and high-speed dynamic weighing
- Max. resolution 500 000 pts
- Transmission rate up to 1200 meas./s.
Details
Specifications
Type
Weigh Cell
Full Scale
15000 g
30000 g
75000 g
30000 g
75000 g

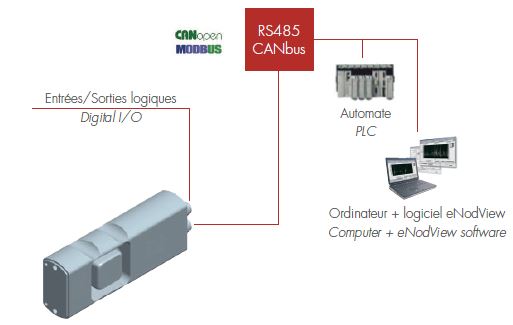

Interface
RS485
Binary I/O
Modbus-RTU
SCMbus
CANopen
Binary I/O
Modbus-RTU
SCMbus
CANopen
IP Rating
IP68
IP69K
IP69K
Models
DVS-C
Digital Load Cell for check weighing, and high speed dynamic weighing

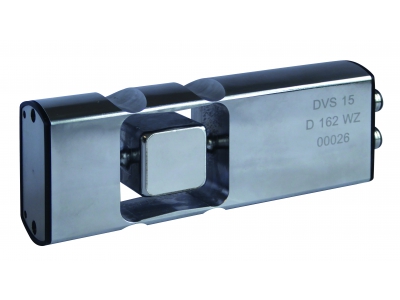

DVS-D
Digital Load Cell for dosing by filling or by unloading
Accessories
RS-485 to USB Convertor
Allows connection of the Digital Load Cell to eNod-View software
Downloads
DVS-C-Digital Single Point Load Cell
Related

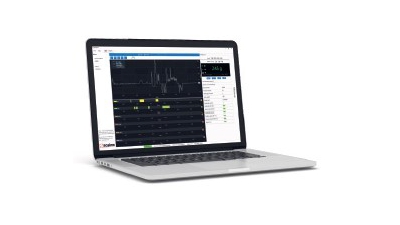

Software for configuration & analysis of eNod4 measurements, providing real-time display, while communicating with the PLC. This is an excellent tool assisting the implementing of Checkweighers, Fillers, Belt Scales, Belt & Loss-in-Weight Feeders.
