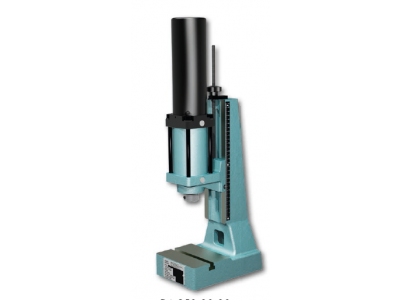

DA range

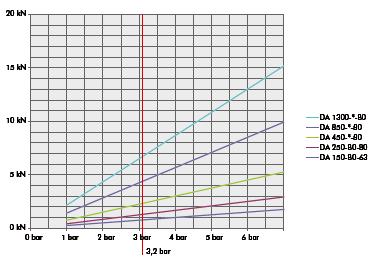

DA presses are the logical implementation of modern press technology for direct-acting pneumatic presses. Due to their modular design, exactly the size needed for the application can be selected, thus optimising the price/performance ratio. Standard stroke lengths from 40 mm to 120 mm are available in 20 mm steps. Special lengths can be pro-vided on request. Direct-acting pneumatic presses produce a constant force over the whole stroke length. All direct-acting pneumatic presses can be provided as automation components or with mäder controllers for individual workstations.
DA presses are practically maintenance-free, as all moving parts are mounted in bearings. Cylinders are pre-greased and are therefore suitable for oil-free operation.
Quality features:
- Anti-twist, hard-chrome-plated ram guided in Teflon bushes
- Simple adjustment of the height of the press head using a threaded spindle and right-angle gearbox
- Side-mounted measuring strip for fast reproduction of settings when changing the tool
- Practically maintenance-free double-acting cylinder
- Adjustable cylinder end-position damping
- Low noise: less than 75 dB
