The D6 transducers are for displacement / position measurement. They make an accurate position measurement of the movement of the armature (the sliding part) relative to the body of the displacement transducer.
This transducer uses the Linear Variable Differential Transformer (LVDT) principle which means that it is probably the most robust and reliable position sensor type available. The strength of the LVDT sensors principle is that there is no electrical contact across the transducer position sensing element which for the user of the sensor means clean data, infinite resolution and a very long life.
The LVDTs are available as either unguided or spring return versions.
D6

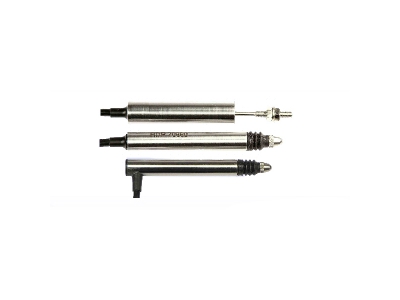

Miniature LVDT Displacement Transducer
RDP Electrosense
- Miniature LVDT
- Available in Return Spring or Unguided Versions
- Rod Profile Housing
- Stainless Steel Housing
- Connection: 2m Integral Cable (Longer Cable Available)
- High Accuracy
- Alternative Probe Tips Available (see Related Documents)
Details
Specifications
Type
LVDT
Full Scale
0.625 mm
2.5 mm
5 mm
8 mm
10 mm
12 mm
2.5 mm
5 mm
8 mm
10 mm
12 mm
Output
V/V AC
Non-Linearity
±0.10 % FS
±0.25 % FS
±0.50 % FS
±0.25 % FS
±0.50 % FS
Resolution
Infinitesimal
Excitation
0.5 - 7 V AC
5 V AC
5 V AC
Min Temperature
-20 °C
Max Temperature
120 °C
Models
D5300
D5400
D6
D600250
D600500
D601000
D602500
D605000
MD5500
Downloads
Related
The DR7AC is a single channel signal-conditioning unit for use with transducers requiring AC excitation and synchronous demodulation, producing a DC output voltage or current. To reduce electrical noise, system problems and the risk of...
