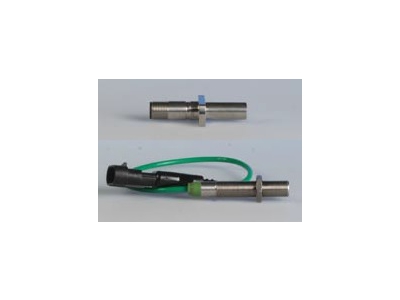

D12

Hall-Effect Speed Sensor

Jaquet North America Inc.

  • Differential Hall-Effect Sensor
  • Stainless Steel Housing (Model D12P)
  • Smooth Flange Mount (Model D12A)
  • Protection Class: IP67
  • Mounting Thread: M12 x 1
  • Connection: 4-pin M12 x 1 Connector (Model D12A)
  • Connection: 24 AWG PTFE-Insulated Leads (Model D12P)

Specifications

Type
Hall Effect
Max Frequency
20 kHz
Mounting
10.8 mm OD flange
Connection
M12x1
Min Temperature
-40 °C

Models

D12A
Smooth Flange Mount, 25mm Shaft, 4-pin M12x1 Connector
D12P
M12x1 Thread, 50mm Thread Length, PTFE-Insulated Leads
