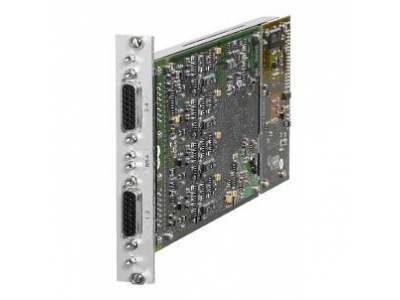

CRSL/UNI-4

imc CRONOS-SL Chassis Module

imc Test & Measurement

  • imc CRONOS-SL Universal Module
  • 4 Analog Input Channels, Isolated
  • Voltage, Current, ICP, Bridge, Strain Gauge or Temperature Inputs
  • Pt100 & Pt1000 Support
  • Selectable Quarter Bridge Completion 120, 350 & 1000 ohms
  • Supports imc Plug & Measure
  • Configurable Sensor Supply

Specifications

Family
imc CRONOS-SL
Unit Type
Module
Input Type
Voltage
Current
Strain Gauge
ICP
Thermocouple/RTD
Analog Inputs
4
Max Bandwidth
48 kHz
Max Sample Rate
100 kHz
Resolution
16-bit
Min Temperature
-40 °C
Max Temperature
85 °C
IP Rating
IP65

Models

CRSL/UNI-4-D
For imc CRONOS-SL Chassis, 4 Analog Inputs, DSUB Connections

Downloads

imc Company Brochure
Brochure
imc CRONOS SL, UNI-4 Datasheet
Datasheet

Related

ACC/DSUBM

The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input amplifiers for 2 input channel on various amplifiers.

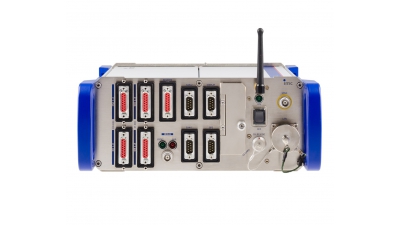

CRSL-4
