CRSL/HRENC-4

imc CRONOS-SL Chassis Module

imc Test & Measurement

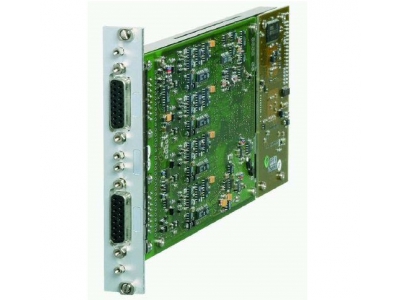

  • imc CRONOS-SL High Resolution Encoder & Counter Input Module
  • 4 Input Channels, Isolated, Differential
  • Counter, Rotational Encoder Inputs
  • 16-bit Resolution
  • 3.9 ns Measurement Time Resolution
  • Overvoltage Protection
  • Occupies 1 Slot

Specifications

Family
imc CRONOS-SL
Unit Type
Module
Input Type
Frequency
Encoder
Digital Inputs
4
Max Sample Rate
50 kHz
Resolution
16-bit
Min Temperature
-40 °C
Max Temperature
85 °C
IP Rating
IP65

Models

CRSL/HRENC-4-D
For imc CRONOS-SL Chassis, 4 Counter Inputs, DSUB Connections
CRSL/HRENC-4-L
For imc CRONOS-SL Chassis, 4 Counter Inputs, LEMO Connections

Downloads

imc Company Brochure
Brochure
imc CRONOS SL, HRENC-4 Datasheet
Datasheet

Related

ACC/DSUBM

The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input and Output Digital Modules.

CRSL-2

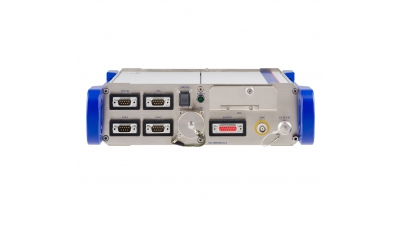

The imc CRONOS-SL-2 chassis allows direct connection of any desired signals and sensors, and provides both power and conditioning. This enables ideal system adaptation to a wide variety of measurement tasks.
