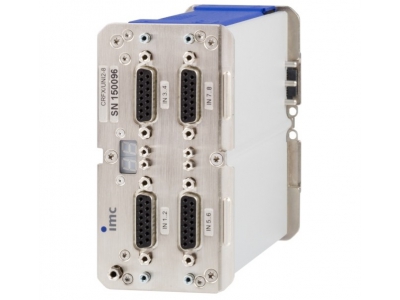

CRFX/UNI2-8

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex Universal Measurement Amplifier
  • 8 Analog Input Channels
  • Finely Adjustable Input Voltage Range (±5 mV to ±50 V)
  • Each Channel with its Own Adjustable Filter & Simulatneous A/D Converter
  • Graphical Configuration Wizard to Setup Strain Gauge Bridges
  • Software Selectable Quarter Bridge Completion 120 & 350 ohms
  • Supports imc Plug & Measure

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
Current
Strain Gauge
ICP
Thermocouple/RTD
Analog Inputs
8
Max Bandwidth
48 kHz

Models

CRFX/UNI2-8
8 Analog Inputs, DSUB-15 Connectors, -10°C to 55°C
CRFX/UNI2-8-ET
8 Analog Inputs, DSUB-15 Connectors, -40°C to 85°C
CRFX/UNI2-8-L
8 Analog Inputs, LEMO Inputs Connectors, -10°C to 55°C
CRFX/UNI2-8-L-ET
8 Analog Inputs, LEMO Inputs Connectors, -40°C to 85°C
