CRFX/ISO2-8

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex Differential Measurement Module
  • 8 Analog Inputs
  • Channel-wise Isolated, Galvanically-separated Inputs
  • Finely Adjustable Input Voltage Range (±5 mV to ±50 V)
  • Each Channel with its Own Adjustable Filter & Simultaneous A/D Converter
  • Supports imc Plug & Measure
  • 40kHz bandwidth, 100,000 samples per second (4 to 20 Chns)

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
Current
ICP
Thermocouple/RTD
Analog Inputs
8
Max Bandwidth
11 kHz

Models

CRFX/ISO2-8
8 Analog Inputs, DSUB-15 Connectors, -10°C to 55°C
CRFX/ISO2-8-ET
8 Analog Inputs, DSUB-15 Connectors, -40°C to 85°C
CRFX/ISO2-8-L
8 Analog Inputs, LEMO Input Connectors, -10°C to 55°C
CRFX/ISO2-8-L-ET
8 Analog Inputs, LEMO Input Connectors, -40°C to 85°C
CRFX/ISO2-8-SUPPLY
8 Analog Inputs, DSUB-15 with Sensor Supply Module, -10°C to 55°C
CRFX/ISO2-8-SUPPLY-ET
8 Analog Inputs, DSUB-15 with Sensor Supply Module, -40°C to 85°C

Related

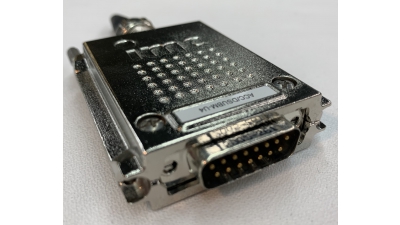

ACC/DSUBM

The 15 Pin DSUB connector with screw terminal connections that reflect the connectivity of specific amplifiers for 4 input channels

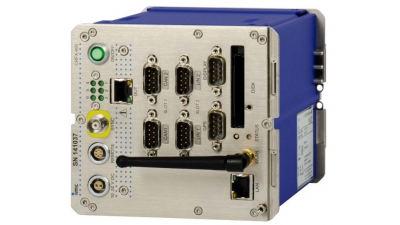

CRFX-2000
