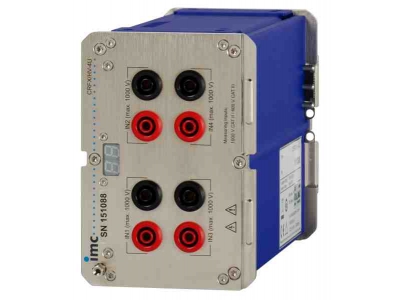

CRFX/HV2-4U

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex High Voltage Measurement Module
  • 4 Analog Input Channels, Isolated
  • Input Ranges from 1000 V to 2.5 V, Selectable per Channel
  • Measurement of Categories 600 V (CATIII)/ 1000 V (CATII)
  • Phase Accuracy Better than 1° for Measurements up to the 50th Harmonic of 50/60 Hz Line Voltage

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
High Voltage/Current
Analog Inputs
4
Max Bandwidth
48 kHz

Models

CRFX/HV2-4U
4 Analog Inputs, Banana Jacks, -10°C to 55°C
CRFX/HV2-4U-ET
4 Analog Inputs, Banana Jacks, -40°C to 85°C
