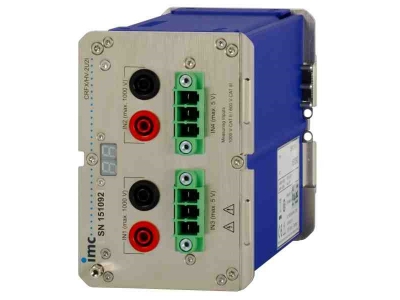

CRFX/HV2-2U2I

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex High Voltage & Current Measurement Module
  • 4 Analog Input Channels, Isolated
  • Measurement of up to 600 Vrms (CATIII)/ 1000Vrms (CATII)
  • Phase Accuracy Better than 1° for measurements of up to the 50th Harmonic of 50/60 Hz Line Voltage
  • Input Ranges from ±1000 V to 2.5 V, Selectable per Channel
  • Direct Support for Use of Rogowski Coils
  • Amplitude & Phase Response of Current Probes Recorded in TEDS, Used During Measurement

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
Current
High Voltage/Current
Analog Inputs
4
Max Bandwidth
48 kHz

Models

CRFX/HV2-2U2I
4 Analog Inputs, DSUB-15 Connectors, -10°C to 55°C
CRFX/HV2-2U2I-ET
4 Analog Inputs, DSUB-15 Connectors, -40°C to 85°C
