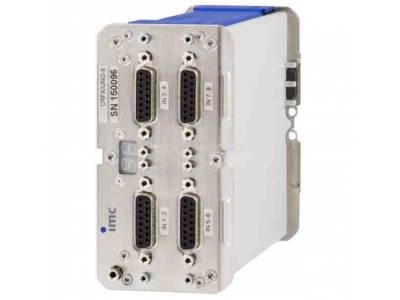

CRFX/DCB(C)2-8

imc CRONOSflex Module

imc Test & Measurement

  • imc CRONOSflex Bridge Measurement Amplifier Module
  • 8 Analog Input Channels
  • Medium Signal Bandwidths of up to 5 kHz
  • Sensor Supply with Adjustable Voltage Supply
  • Software Selectable Quarter-Bridge Completion Between 120 & 350 ohms
  • Graphical Configuration Wizard to Set Strain Gauge Bridges
  • Supports imc Plug & Measure

Specifications

Family
imc CRFX
Unit Type
Module
Input Type
Voltage
Current
Strain Gauge
ICP
Analog Inputs
8
Max Bandwidth
5 kHz

Models

CRFX/DCB2-8
8 Analog Inputs, DSUB-15 Connectors, -10°C to 55°C
CRFX/DCB2-8-ET
8 Analog Inputs, DSUB-15 Connectors, -40°C to 85°C
CRFX/DCBC2-8
8 Analog Inputs, DSUB-26-HD Connectors, -10°C to 55°C
CRFX/DCBC2-8-ET
8 Analog Inputs, DSUB-26-HD Connectors, -40°C to 85°C
CRFX/DCBC2-8-L
8 Analog Inputs, LEMO Connectors, -10°C to 55°C
CRFX/DCBC2-8-L-ET
8 Analog Inputs, LEMO Connectors, -40°C to 85°C

Related

ACC/DSUBM

The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input amplifiers for 2 input channel on various amplifiers.

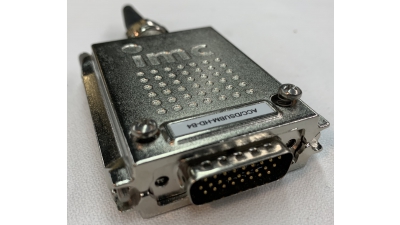

ACC/DSUBM

The 26 Pin , 3 row, DSUB connector with terminal connections that reflect the connectivity of specific amplifiers for 4 Input channels.

ZBXXX(4)-CD300(2)

This metal terminal box is ideal for field wiring of sensors, strain gauges, signal conditioners and instrumentation, providing a quick, reliable and convenient electrical connections.

CCXXX-CDXXX

These molded cables are terminated with the 15 pin DSUB Socket on one end and a 15 pin - 2 row DSUB connector on the other end with straight through 26AWG conductors.

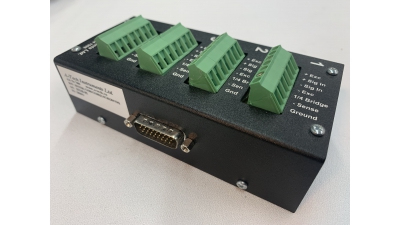

ZBXXX(4)-CV300

This metal terminal box provides ease of connecting field mounted sensors, strain gauges, signal conditioners and instrumentation, providing a quick, reliable and convenient electrical connections.

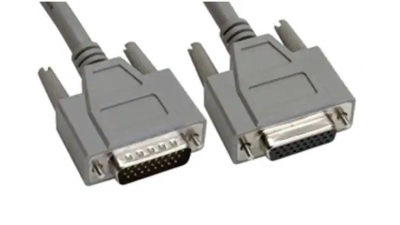

CWXXX-CVXXX
