The CAN2 fieldbus system has a maximum transfer rate of 1 MBit/s which is widely prevalent and accepted in the automotive and other manufacturing industries.
Each Module has 2 Receive / Transmit ports. Multiple Feildbus modules can be provided within the CRFX and CRC chassis and 1 module is standard in all of the C-Series Data Acquisition and Control Systems.
These can be combined with LINbus, ARINC-429, Ethernet, RS232/485, Analog and digital modules. Each port supports up to 8 nodes as well as a variety of protocols such as CCP and KWP2000.
Measured data transmitted via CAN-Bus can be triggered, displayed and mathematically processed as desired. The protocol parameters are configured by means of the very user-friendly software, imc Studio or imc Devices, and can be saved in their physical units.

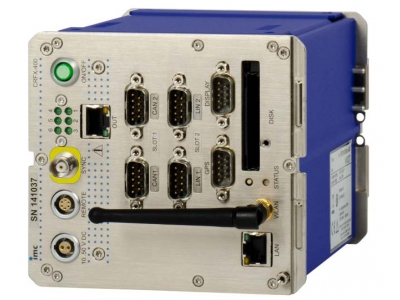

CRFX/CAN2
imc Fieldbus Interface - CANbus
imc Test & Measurement
- imc CANbus, Fieldbus Interface
- Transfer Protocol: CAN High Speed 1 Mbaud
- Transfer Protocol: CAN Low Speed 125 Kbaud
- Communication with CANSAS module via CANbus Interface
- Configuration and Monitoring is fully supported by imc STUDIO Software
- Occupies 1 Fieldbus Slot in the CRFX or CRC chassis
Details
Specifications
Family
imc CRFX
Unit Type
Module
Field Interface
CANbus
Min Temperature
-10 °C
-40 °C
-40 °C
Max Temperature
55 °C
85 °C
85 °C
Models
CRFX/CAN2
For CRFX Base Unit, CANbus Interface, -10°C to 55°C
CRFX/CAN2-ET
For CRFX Base Unit, CANbus Interface, -40°C to 85°C
