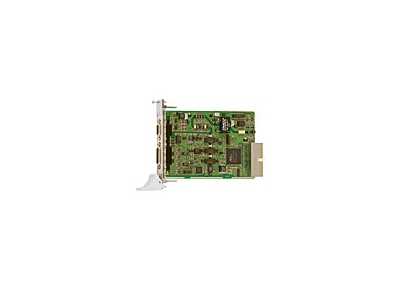

CPCI-3009

Multifunction Board for Compact PCI

ADDI-DATA GmbH

  • Multifunction Board for Compact PCI
  • CPCI 3.3 V or CPCI 5 V
  • 16 Single-Ended or 8 Differential Inputs
  • 16-bit Resolution, 100 kHz
  • Voltage & Current Inputs (option)
  • 4 Analog Outputs, 12-bit
  • Reprogrammable Counter Function Module

Specifications

Borad Type
Compact PCI
Input Type
Voltage
Current
Digital
Frequency
Encoder
PWM
Analog Inputs
16
Digital Inputs
4
Analog Outputs
4
Digital Outputs
4

Models

CPCI-3009
16 SE/8 Differential Inputs, 4 Analog Outputs, 16-bit
CPCI-3009-30V
16 SE Inputs, Unipolar, 0-30V, 4 Analog Outputs, 16-bit

Downloads

CPCI-3009 Multifunction Counter Board for Compact PCI
Datasheet
