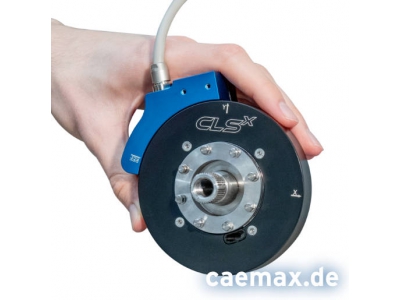

CLSx - Steering Effort Sensor

Steering Effort Sensor-Top accuracy, ultra slim shape

CAEMAX imc group

  • Ultra slim sensor body design for seamless integration with minimal extension of steering column
  • All functions of the steering wheel are preserved
  • Steering torque range ±100 Nm or ±200 Nm
  • Steering angle range ±1475°
  • Rotational velocity range ±1000°/sec
  • Acceleration in x, y, z direction (optional)
  • Rotational acceleration (optional)

Specifications

Input Types
Strain Gauge
Vdc
No. of Inputs
1-2
Output
Analog
Ethernet
CANbus

Models

STET/CMX-CLS-REF
CLSx option reference mark
STET/CMX-CLS-X100
CLSx Steering Effort Sensor 100Nm
STET/CMX-CLS-X200
CLSx Steering Effort Sensor 200 Nm

Downloads

CLSx - Steering Effort Sensor
Datasheet

Related

TEL1-PCM

This is a Single Channel Digital Telemetry System for Strain Gage Applications on Rotating Shafts and Moving Structures. The measurements are digitally transmitted and regenerated as an Analog Output.

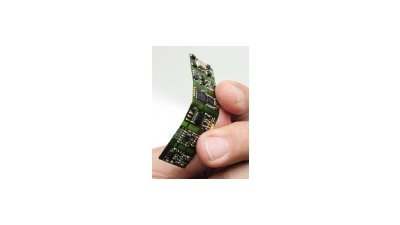

TEL1-PCM-Flex
