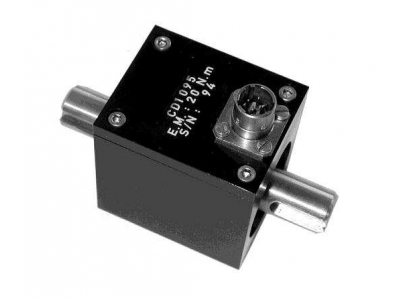

The CD1095 torque sensor is specifically engineered for precise in-line torque measurements on rotating shafts, incorporating advanced thin layer strain gauges in a Wheatstone bridge setup to ensure exceptional temperature stability. This design guarantees accurate torque readings essential for various industrial applications.
Optional enhancements include an on-board amplifier for high-level output, making the CD1095 adaptable to diverse measurement systems. The sensor's robust stainless steel construction and high stiffness make it suitable for challenging environments, ensuring reliability and durability.
With a measurement range from ±5 Nm to ±2,500 Nm (±4 to 2,000 lbf.ft), the CD1095 meets a broad spectrum of torque measurement needs. Its keyed shaft couplings allow for straightforward installation, while the availability of cable gland or connector outputs provides flexibility in system integration. For alternative coupling requirements, the CD1050 model offers male square couplings, extending the application possibilities of this high-precision sensor.

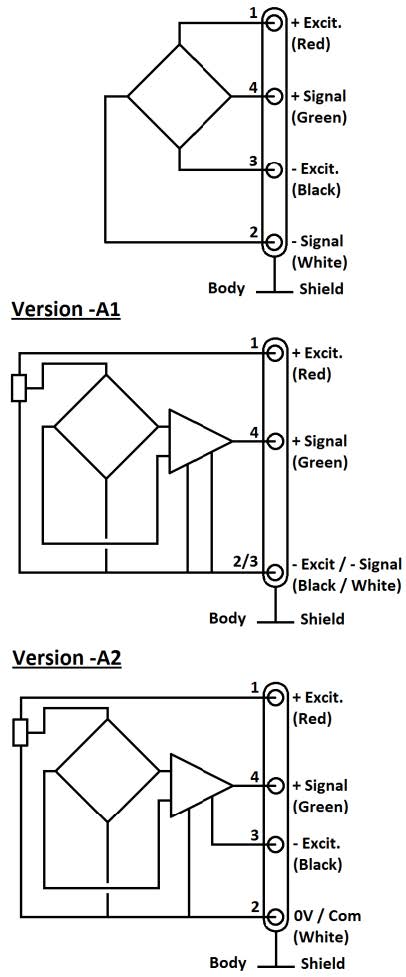

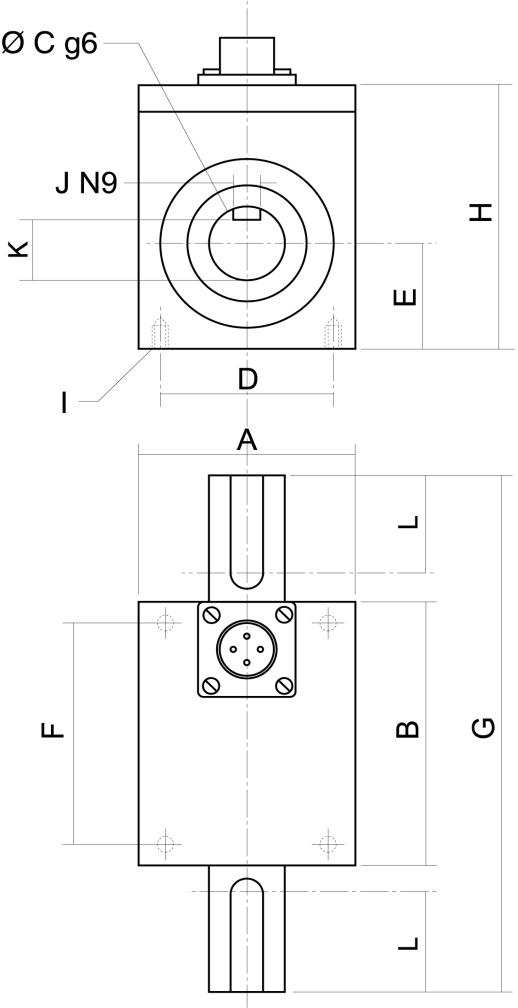

DIMENSIONS & WIRING SCHEMATIC (IN METRIC AND IMPERIAL)

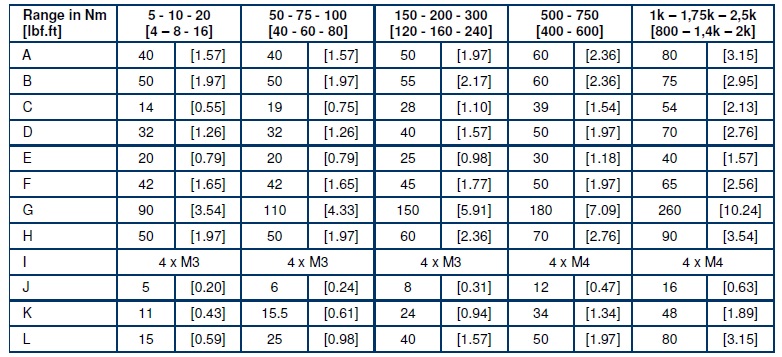

Dimensions in mm [inch]
