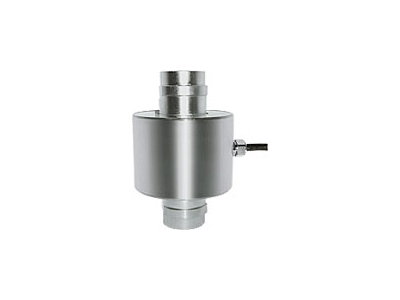

CB50X

Rod Type Load Cell with Anti- Rotation System

Lorenz Messtechnik GmbH

  • Approved up to 4000d OIML R60
  • Spherical Base and Self-Centering Capability
  • Anti-Rotation System Included
  • Compression
  • Accuracy: 0.013% F.S.
  • Outer Diameter: 88.9mm
  • Height: 130.0mm

Specifications

Type
Rod Type
Application
Compression
Full Scale
11200 lbs
22000 lbs
45000 lbs
66000 lbs
88000 lbs
132000 lbs
Output
2 mV/V
Precision
±0.013 % FS
Excitation
1 V - 15 V DC
IP Rating
IP68
Min Temperature
-10 °C
Max Temperature
40 °C

Models

CB50X-C4 10e

Downloads

CB50X, Rod Type Load Cell with Anti- Rotation Syst
Datasheet
