The SCI16 measurement module is an analog input modules with 16 multiplexed isolated inputs. Voltage signals of up to 60 V, current signals of up to 20 mA, Pt100 sensors and any commercially available thermocouples can be connected directly. Advanced signal processing techniques provide fully simultaneous sampling without any channel dependent time delays, despite it's multiplexed architecture. Refined filtering and noise suppression methods allow highly sensitive voltage and thermocouple measurements, even in demanding environments. The noise suppression provided is most effective at low sampling rates and decreases as the sampling rate is raised.

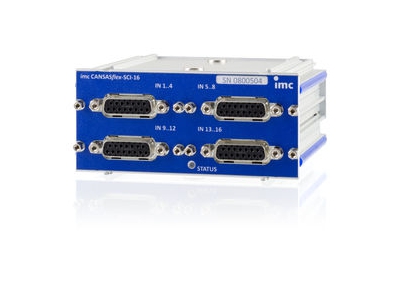

CANSASflex-SCI16
imc CANSASflex Module
imc Test & Measurement
- imc CANSASflex Module for Voltage, Current & Temperature
- 16 Analog Input Channels
- Measurement Ranges & Sampling Rates Set per Channel
- 16 bit resolution (with internal 24 bit processing)
- Supports imc Plug & Measure TEDS
- Simultaneous Sampling of All Channels
- Mechanically Robust
Details
Models
CANSASflex-SCI16
16 Analog Inputs, DSUB-15 Signal Conn, DSUB-9 CAN Conn, IP40
