The SC16 CAN-Bus measurement module is an especially affordable analog input module with 16 multiplexed differential inputs. Voltage signals of up to 60 V (20 V via optional divider plug), current signals of up to 20 mA, Pt100 sensors and any commercially available thermocouples can be connected directly. Special noise suppression functionality makes highly sensitive voltage and thermocouple measurements in difficult environments possible despite the multiplexer. The noise suppression provided is most effective at low sampling rates and decreasingly effective as the sampling rate is raised.

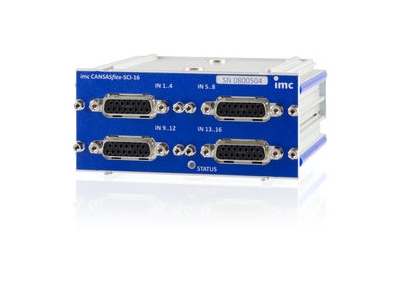

CANSASflex-SC16
imc CANSASflex Module
imc Test & Measurement
- Analog Input Module for Voltage, Current & Temperature
- 16 Analog Input Channels
- Simultaneous Sampling of All Channels
- Measurement ranges and sampling rates can be set per channel
- 16 bit resolution (with internal 24 bit processing)
- Supports imc Plug & Measure TEDS (Transducer Electronic Data Sheets)
- Mechanically Robust
Details
Models
CANSASflex-SC16
16 Analog Inputs, DSUB-15 Signal Plug, IP40
