The CANSAS-INC4 offers 4 differential channels which can each be used for event counting, time measurement or a combination of event counting and time measurement. These operating modes enable capture of incremental counter sensors such as those used for measuring frequencies, RPM-values and velocities. The switching threshold and hysteresis are software configurable for the purpose of detecting events or impulses for incremental measurements.

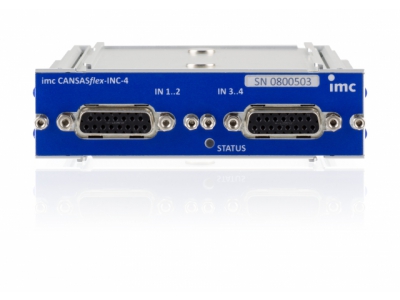

CANSASflex-INC4
imc CANSASflex Module
imc Test & Measurement
- imc CANSAS Module for Frequency, Rotation, Position & Angle Counter Signals
- 4 Digital Input Channels
- All Channels Fully Conditioned
- Simultaneous Sampling of All Channels
Details
Models
CANSASflex-INC4
4 Inputs, 2x DSUB Signal Terminals, IP40
