The imc CANSAS-DI16 provides the possibility to capture up to 16 digital inputs at a maximum sampling rate of 10 kHz. The data capture can take the form of either single-bit or as a binary word over all the inputs; the module’s input voltage can be set by software to either 5 V or 24 V.
CANSASflex-DI16

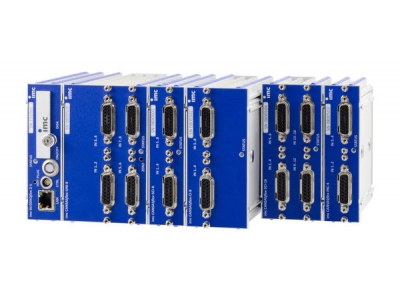

imc CANSASflex Module
imc Test & Measurement
- imc CANSASflex Digital Input Module
- 16 Digital Input Channels
- Simultaneous Sampling of All Channels
- Self-Start on Power-On
Details
Models
CANSASflex-DI16
16 Digital Inputs, 2x DSUB Conn, IP40
