CANSASfit-HISO-T-8-2L

High Voltage 8 Channel, Measurement Module

imc Test & Measurement

  • Isolation: 1000 V (according to safety standard DIN EN 61010)
  • High-voltage-proof special connectors"2L": 2 x LEMO.2P as common socket (4 channels at each 8-pin socket)
  • Per-channel isolated measurement inputs, individual filtering and ADCs
  • Channel individual internal cold junction compensation
  • 24-bit digitization and internal processing CAN-output format selectable: 16-bit or FLOAT (24-bit mantissa)
  • Click mechanism providing both mechanical and electrical coupling

Details

The CANFT/HISO-T-8-2L supports temperature measurement on 8 channels with thermocouples (type K), which are on a high common mode level or in environments with up to 1000 V voltage:

  • Temperature with thermocouples type K

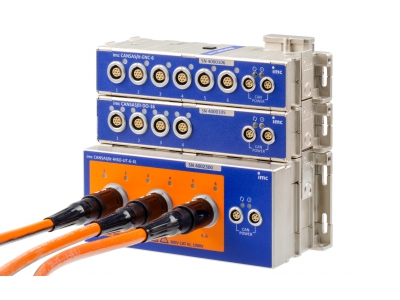

Equipped with the well established click connector, and can be easily connected to neighbouring imc CANSASfit HISO modules and any other members of the imc CANSASfit family.

Models

CANSASfit-HISO-T-8-2L
High voltage isolated 8-channel CAN-based measurement module for thermocouples
