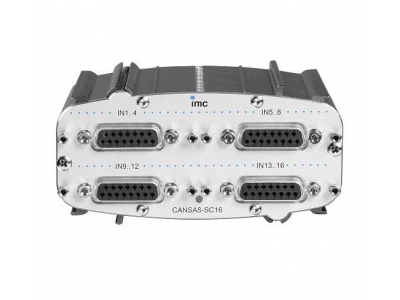

CANSAS-SC16

imc CANSAS Module

imc Test & Measurement

  • imc CANSAS Module for Voltage, Current & Temperature
  • 16 Analog Input Channels
  • Simultaneous Sampling of All Channels
  • Synchronization of CANSAS Modules with CAN Logger
  • Mechanically Robust
  • Self-Start at Power-On
  • Supports imc Plug & Measure

Specifications

Family
imc CANSAS
Unit Type
Module
Standalone
Input Type
Voltage
Current
Thermocouple/RTD
Analog Inputs
16
Max Bandwidth
28 Hz
Max Sample Rate
500 Hz
Resolution
16-bit
Communication
CANbus
Min Temperature
-30 °C
Max Temperature
85 °C
IP Rating
IP20
IP40
IP65

Models

CANSAS-K-SC16
16 Analog Inputs, DSUB-15 Signal Plug, Cassette Housing
CANSAS-K-SC16-2T
16 Analog Inputs, Thermocouple Signal Plug, Cassette Housing
CANSAS-L-SC16
16 Analog Inputs, DSUB-15 Signal Plug, Aluminum Housing, Long Model
CANSAS-L-SC16-2T
16 Analog Inputs, Thermocouple Signal Plug, Aluminum Housing
CANSAS-SC16
16 Analog Inputs, DSUB-15 Signal Plug, Aluminum Housing
CANSAS-SL-SC16-D
16 Analog Inputs, DSUB-15 Signal Plug, Sealed Housing
CANSAS-SL-SC16-L
16 Analog Inputs, LEMO Signal Plug, Sealed Housing
