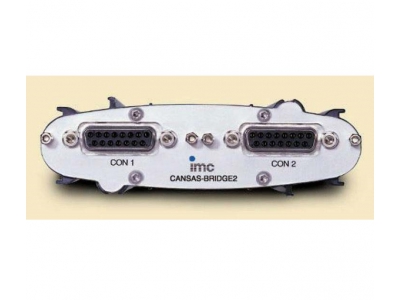

The CANSAS-BRIDGE-2 is a high-performance module for acquisition of measurement bridge and strain gauge data. Each channel is amplified, filtered and digitized separately. The module also offers full, half and quarter bridge measurement.
CANSAS-BRIDGE-2
imc CANSAS Module
imc Test & Measurement
- CANSAS-BRIDGE-2 Differential Amplifier for Bridge & Strain Gauge Measurement
- 2 Analog Input Channels
- Galvanically Isolated Channels
- Simultaneous Sampling of All Channels
- Power Supply via CAN Cable Possible
- Automatic Self-Start on Power-On
Details
Specifications
Family
imc CANSAS
Unit Type
Module
Standalone
Standalone
Input Type
Strain Gauge
Analog Inputs
2
Max Bandwidth
1 kHz
Max Sample Rate
5 kHz
Resolution
16-bit
Communication
CANbus
Min Temperature
-30 °C
Max Temperature
85 °C
Models
CANSAS-BRIDGE-2
2 Analog Inputs, Aluminum Strand Cast Housing, 2x DSUB Signal-Conn
CANSAS-K-BRIDGE-2
2 Analog Inputs, Casette for 19" Subtrack, 2x DSUB Signal-Conn
Related
The 15 Pin DSUB connector with terminal connections that reflect the connectivity of specific Input amplifiers for 2 input channel on various amplifiers.
These molded cables are terminated with the 15 pin DSUB Socket on one end and a 15 pin - 2 row DSUB connector on the other end with straight through 26AWG conductors.
This metal terminal box is ideal for field wiring of sensors, strain gauges, signal conditioners and instrumentation, providing a quick, reliable and convenient electrical connections.
This metal terminal box is an excellent solution for wiring of field mounted sensors, strain gauges, signal conditioners and instrumentation, providing a quick, reliable and convenient electrical connections.

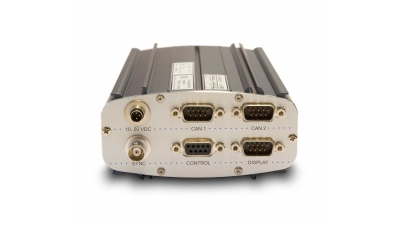

imc BUSDAQ-2 is a multi-bus data logger for LIN and CAN. imc BUSDAQ-2 works independently at very low power consumption and is secured against power failure by an uninterruptible power supply.

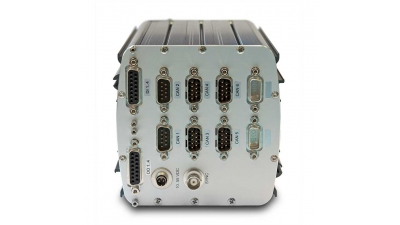

imc BUSDAQ-X is a multi-bus data logger for LIN and CAN. imc BUSDAQ-X works independently at very low power consumption and is secured against power failure by an uninterruptible power supply.

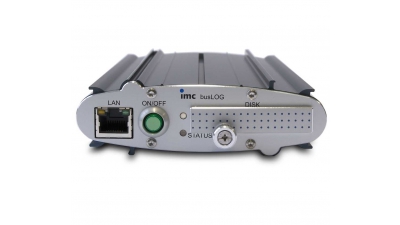

imc BUSLOG is a multi-bus data logger for LIN and CAN. imc BUSLOG works independently at very low power consumption and is secured against power failure by an uninterruptible power supply.
