The CAN2 fieldbus system has a maximum transfer rate of 1 MBit/s which is widely prevalent and accepted in the automotive and other manufacturing industries.

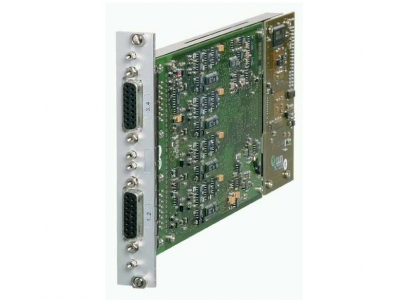

CAN2
imc Fieldbus Interface - CANbus
imc Test & Measurement
- imc CANbus, Fieldbus Interface
- Transfer Protocol: CAN High Speed 1 Mbaud
- Transfer Protocol: CAN Low Speed 125 Kbaud
- Parameterization of CANSAS module via CANbus Interface
- Fully Supported by imc STUDIO Software
- Occupies 1 Fieldbus Slot
- Isolated
Details
Specifications
Family
imc CRONOScompact
imc SPARTAN
imc CRONOS-SL
imc SPARTAN
imc CRONOS-SL
Unit Type
Module
Field Interface
CANbus
Min Temperature
-10 °C
-40 °C
-40 °C
Max Temperature
55 °C
85 °C
85 °C
Models
CRC/CAN2
For Portable CRONOScompact Housing, CANbus Interface, -10°C to 55°C
CRC/CAN2-ET
For Portable CRONOScompact Housing, CANbus Interface, -40°C to 85°C
CRC/CAN2-R
For Rack CRONOScompact Housing, CANbus Interface, -10°C to 55°C
CRC/CAN2-R-ET
For Rack CRONOScompact Housing, CANbus Interface, -40°C to 85°C
CRSL/CAN2
For CRONOS-SL Housing, CANbus Interface, -40°C to 85°C
SPAR/CAN2
For Portable SPARTAN Housing, CANbus Interface, -10°C to 55°C
SPAR/CAN2-ET
For Portable SPARTAN Housing, CANbus Interface, -40°C to 85°C
SPAR/CAN2-R
For Rack SPARTAN Housing, CANbus Interface, -10°C to 55°C
SPAR/CAN2-R-ET
For Rack SPARTAN Housing, CANbus Interface, -40°C to 85°C
