The BP900900 model Biomechanics Force Platform is ideal for applications which require high frequency response or a light-weight sensor. The BP900900 can be used for biomechanics, engineering, medical research, orthopedics, rehabilitation evaluation, prosthetics, and general industrial uses. Specific uses include gait analysis, stability analysis, neurological analysis, prosthetics fitting, athletic performance, shoe design, and force, power, and work studies.

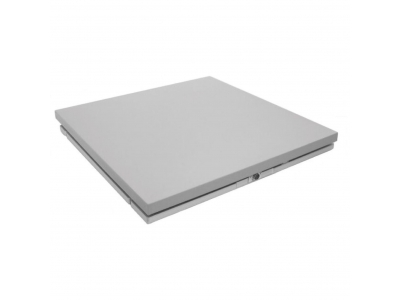

BP900900
Force Platform [Discontinued]
Advanced Mechanical Technology Inc. (AMTI)
- [Discontinued] replaced by the BMS900900
- Large target area
- High frequency response
- Suitable for dynamic applications; running and jumping
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
390 Hz
400 Hz
500 Hz
400 Hz
500 Hz
Non-Linearity
± 0.2 % FS
Resolution
12-bit
14-bit
14-bit
Output
± 10 V DC
Dimensions
900 x 900 x 102 mm
Weight
90 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
BP900900-1000
Fz Range: 1000 lbs, Fz Freq.: 390 Hz
BP900900-2000
Fz Range: 2000 lbs, Fz Freq.: 400 Hz
BP900900-4000
Fz Range: 4000 lbs, Fz Freq.: 500 Hz
Downloads
BP900900 Datasheet
