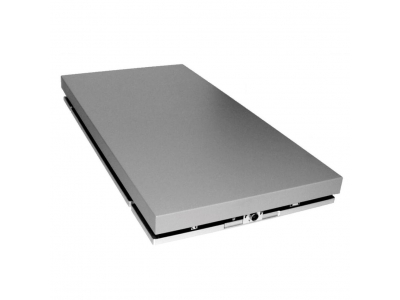

The BP6001200 model Bio-mechanics Force Platform is ideal for applications which require a large size high frequency response sensor with a low mass top. It can be used for biomechanics, engineering, medical research, orthopedics, rehabilitation evaluation, prosthetics, and general industrial uses. Specific uses include gait analysis, stability analysis, neurological analysis, prosthetics fitting, athletic performance, shoe design, and force, power, and work studies.
BP6001200
Force Platform [Discontinued]
Advanced Mechanical Technology Inc. (AMTI)
- [Discontinued] replaced by the BMS6001200
- Long target area
- Designed for sports performance analysis; long jumping
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
390 Hz
410 Hz
500 Hz
410 Hz
500 Hz
Non-Linearity
± 0.2 % FS
Resolution
12-bit
14-bit
14-bit
Output
± 10 V DC
Dimensions
600 x 1200 x 102 mm
Weight
85 lbs
Top Plate Material
Composite
Interface
USB
RS-232
RS-232
Power Supply
110 - 240 V AC
Min Temperature
-18 °C
Max Temperature
52 °C
Models
BP6001200-1000
Fz Range: 1000 lbs, Fz Freq.: 390 Hz
BP6001200-2000
Fz Range: 2000 lbs, Fz Freq.: 410 Hz
BP6001200-4000
Fz Range: 4000 lbs, Fz Freq.: 500 Hz
Downloads
BP6001200 Datasheet
