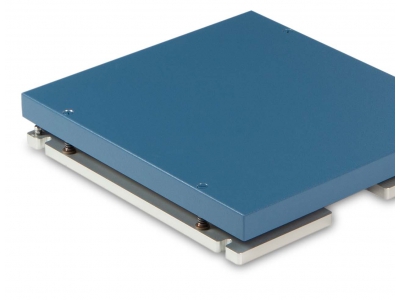

BMS6001200

Force Platform

Advanced Mechanical Technology Inc. (AMTI)

  • Large 600 x 1200 mm target area, ideal for running, pitching, and long jump applications
  • Six-channel force and moment measurement: Fx, Fy, Fz, Mx, My, Mz
  • Widely used in AMTI’s Instrumented Pitching Mound and track installations
  • High accuracy (±0.5% of applied load) with <0.5 mm center of pressure precision
  • ASTM F3109-23 compliant for force plate verification standards
  • Excellent repeatability across the entire surface with AMTI’s OPTIMA technology
  • Supports dual-plate or extended setups for advanced performance testing

Specifications

Full Scale (Fz)
1000 lbs
2000 lbs
4000 lbs
Fz Natural Frequency
260 Hz
270 Hz
280 Hz
Dimensions
600 x 1200 x 102 mm
Weight
85 lbs
Top Plate Material
Composite
Power Supply
USB Powered
Min Temperature
-17 °C
Max Temperature
52 °C

Models

BMS6001200-1K
1000 lb vertical force capacity
BMS6001200-2K
2000 lb vertical force capacity
BMS6001200-4K
4000 lb vertical force capacity

Downloads

AMTI_BMS6001200_ProductSheet
Datasheet
