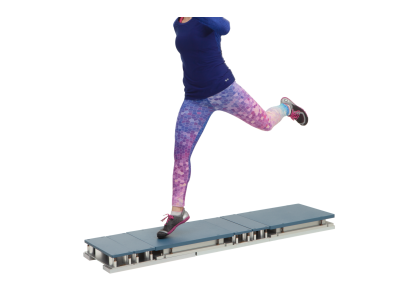

The BP400600HF-OP, now equipped with through-top access holes and features AMTI’s advanced Optima technology – providing industry leading accuracy. It has a 2:3 width-to-length ratio that is well-suited to accommodate various stride lengths. It also features a low-mass composite top plate that provides excellent frequency response, perfect for analysis of athletic performance, running and jumping.
BMS400600HF
High-Frequency Force Platform
Advanced Mechanical Technology Inc. (AMTI)
- Composite top plate for enhanced stiffness and reduced weight
- High-frequency model for dynamic or vibration-sensitive environments
- Dimensions: 400 mm × 600 mm
- Optimized natural frequencies up to 830 Hz (Fz)
- Compatible with OPT-SC amplifier and digital/analog output
Details
Specifications
Full Scale (Fz)
1000 lbs
2000 lbs
2000 lbs
Fz Natural Frequency
780 Hz
830 Hz
830 Hz
Non-Linearity
± 0.2 % FS
Output
± 10 V DC
Dimensions
400 x 600 x 83 mm
Weight
40 lbs
Top Plate Material
Composite
Interface
USB
Min Temperature
-18 °C
Max Temperature
50 °C
Models
BMS400600HF -1000
Fz Range: 1000 lbs, Fz Freq.: 780 Hz
BMS400600HF -2000
Fz Range: 2000 lbs, Fz Freq.: 830 Hz
BP400600HF -OP-1000
Fz Range: 1000 lbs, Fz Freq.: 780 Hz
BP400600HF -OP-2000
Fz Range: 2000 lbs, Fz Freq.: 830 Hz
