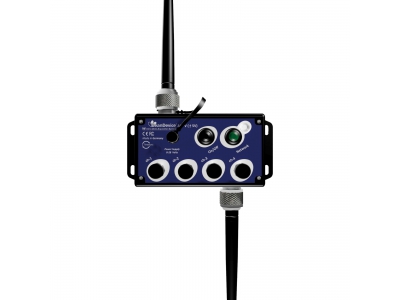

The BeanDevice® AN-V is a wireless data logger with voltage inputs (±5V or ±10V). Special care is taken in the analog signal conditioner design with an accuracy of ±0.08% (FS) and a dynamic range of 16-bits
The sensor is directly powered by a high accuracy and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® (4.5 to 20V).
Characterized by a watertight (IP65) and small (146.05 mm x 65.5 mm x 33.5mm) aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 1 Kilometer (L.O.S.), this wireless device is well suited for all types of industrial applications.
Characterized by a watertight (IP65) and small (146.05 mm x 65.5 mm x 33.5mm) aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 1 Kilometer (L.O.S.), this wireless device is well suited for all types of industrial applications.
While the vast majority of wireless sensors show their limits in harsh industrial environment, the BeanDevice® AN-V integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna diversity improves both the quality and reliability of a wireless link by 30%.
The outstanding TimeSync® function allows to reach a time-synchronization of ±2.5ms over the wireless sensor networks. It contributes to enhance user experience about data fusion and modal analysis.
Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway® or OPC DA available on our BeanScape® (Premium+ & Cloud versions only).
BeanScape 2.4GHz - How to use the Alarm - Data Acquisition Mode: https://youtu.be/XxWJT7A9ntY
BeanScape 2.4GHz - How to use Low Duty Cycle Data Acquisition Mode: https://youtu.be/TGDBPrFeO_8
Beanscape 2.4GHz - How to perform streaming in Data Acquisition Mode: https://youtu.be/OVVpj0V8svU
How to switch between Standard and Expert HMI View : https://youtu.be/HFtu7HapIeI
