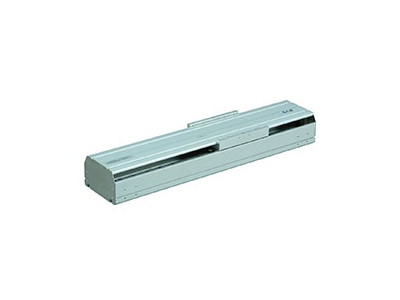

The BA-III 60 is a high-performance ball screw drive actuator from Shibaura (Toshiba) Machines, designed for precision applications requiring robust payload handling and accurate positioning. Available with motor outputs of 400W and 750W, the BA-III 60 accommodates a range of operational needs.
It offers a stroke range from 150mm to 1700mm, allowing for versatile application across different tasks. The actuator can handle a maximum payload of 250kg in horizontal configurations and 100kg in vertical configurations, making it suitable for heavy-duty operations. The maximum speed of 2300mm/sec ensures rapid movement, while the positioning repeatability of ±0.01mm guarantees high precision.
The BA-III 60 is controlled by the CA20-M40 or CA25-M80 controllers, depending on the motor output. Both controllers provide comprehensive functionality, including sequential programming mode, multitasking, palletizing mode, external point designation mode, and maximum torque limit function. They support various fieldbus options like CC-Link, DeviceNet, and Ethernet I/P, ensuring flexible integration into existing systems.
The compact design of the controllers, with dimensions of 85W x 160H x 150D and a mass of 1.58kg, facilitates easy installation in various environments. Storage capacity supports 16 programs with 999 points and 2500 steps, ensuring sufficient capability for complex tasks.
