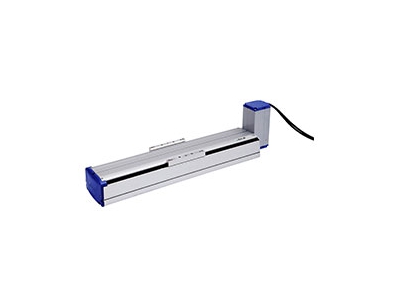

The BA-III 50 is a high-precision Cartesian robot actuator from Shibaura (Toshiba) Machines, featuring a timing belt drive system. It is available with motor outputs of 200W or 400W and supports stroke lengths up to 3500 mm. This model can handle a maximum payload of 40 kg for horizontal operations. The BA-III 50 achieves a maximum speed of 2000 mm/s with a lead of 42 mm and maintains a positioning repeatability of ±0.04 mm.
BA3-50
Timing belt drive - CARTESIAN Robot - Medium Load
Shibaura Machine Co. Ltd. - TM Robotics
- Motor output: 200W or 400W
- Stroke length: Up to 3500 mm
- Maximum load capacity: 40 kg (horizontal)
- Peak speed: 2000 mm/s (lead 42 mm)
- Position accuracy: ±0.04 mm
Details
Specifications
Type
Cartesian
Number of Axis
1
Arm Length
Full Length 3500 mm
Maximum Speed
2000 mm/sec
Maximum Payload Mass
40 kg
Controllers
CA25-M10
Models
BA3-50
Downloads
BAIII_Full_Catalog
